Stainless Steel Bioreactor

Temperature control accuracy of 0.1℃. Display accuracy of 0.1℃.

DO control accuracy of 2%, resolution of 0.1%.

PH control accuracy of 0.01, resolution is 0.01.

Two forms:surface aeration and deep aeration.

Three forms:micro-bubble aeration,non-bubble aeration and large-bubble aeration.

The gas flow meter controller proportionally controls the aeration, the rotameter shows auxiliary adjustment, and the steady-state accuracy is 0.2%.

Magnetic levitation stirring magnetic coupling principle-zero leakage maintenance-free.

Online CIP/SIP for the whole system.

Electronic signature,electronic record and audit trail functions.

The specific configurations can be customized according to the needs of customers.

Specification

Stainless Steel Bioreactor

Model	CSBR series
Volume	10-10000L (customized)
Material	he part in contact with the material is metal material(316L),and the rest of the parts are 304L
Agitation Speed	0-200rpm(Determined by the actual working conditions)
Automatic Control System	Siemens platform(customized and developed by Chanse)

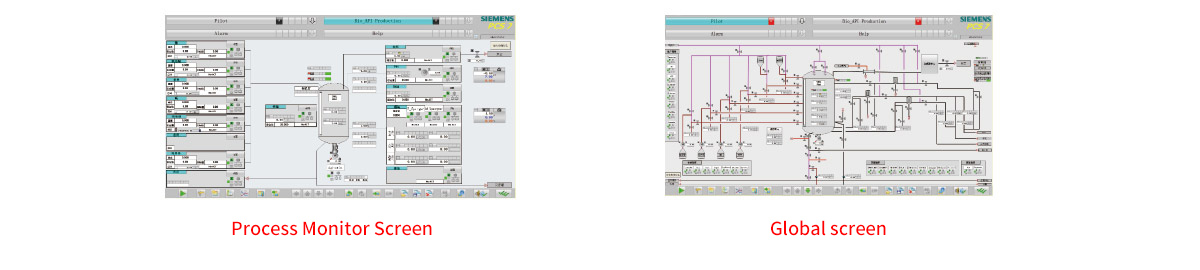

Software Introduction

The software is designed according to the requirements of GMP5 and FDA11CFR Part11.Depending on the process,it can operate parameters, preset programs,and call module editing.Various parameters during the operation of the equipment are recorded in files.
