Raman Spectrometer

The portable Raman spectrometer utilizes laser Raman spectroscopy analysis technology to perform fast identification and detection of various chemical reagents, drugs, explosives, hazardous chemicals, jewelry, raw and auxiliary materials, etc. It can accomplish detection on liquid and solid samples without damaging the integrity of the measured samples, offering specific names, material properties, and spectrums of the measured samples and generating a PDF report. The entire process typically takes only a few seconds. Combined with the latest Raman surface-enhanced reagents or chips, it can perform quick detection of various API and excipients in pharmaceutical industry. The Raman spectrometer is compactly designed, structurally simple, and cost-effective.

One-click sampling and fast non-intrusive testing: samples can be tested through transparent or semi-transparent containers such as glass, plastic bags, and beverage bottles, without direct contact.

Adjustable laser power: multiple excitation light sources such as 785nm and 830nm are available, and the power can be automatically adjusted based on the corresponding sensitivity of substance signals.

High resolution and fingerprint specificity: it is easier to extract feature peaks and accurately determine customs codes, categories, and chemical components of the tested substances.

Multiple measurement modes: quick detection mode and precision detection mode, etc.

Optimized automatic mixture analysis algorithm: it allows for more efficient identification of mixtures.

Multiple spectral matching identification algorithms(e.g., HQI and feature peak matching) available: it can meet a variety of application scenarios

PDF test results report can be generated and exported.

Multiple communication methods available: WIFI, Bluetooth, GPS, etc.

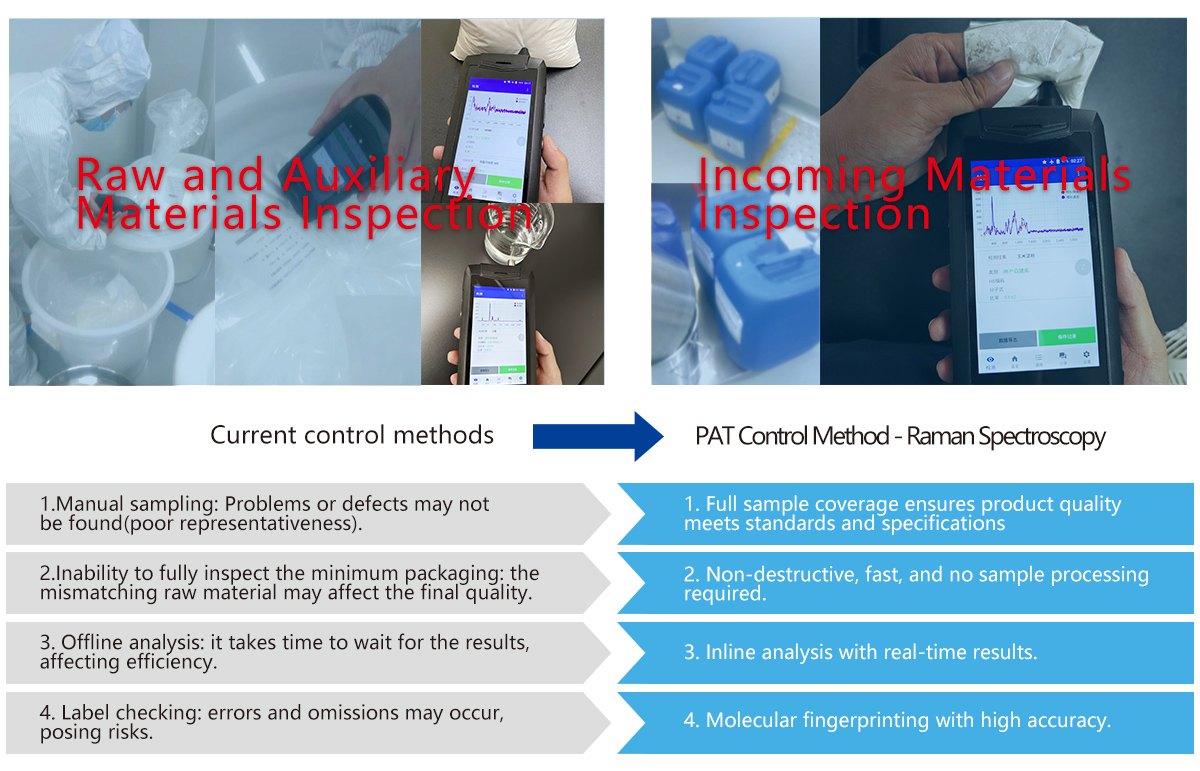

Application Scenario

Specification

Raman Spectrometer

Product Model	RM785	RM830
Size	180x95x38mm
Output Interface	~700g
Spectral Scope	Micro USB
Spectral Resolution	200~3100cm	200~2500cm
Excitation Wavelengths	<7cm-1@10μm slit,<10cm-1@25μm slit,<15cm-1@50μm slit
Service Life of Laser	785±0.5nm，Line width<0.08nm	830±0.5nm，Line width<0.08nm
Power/Voltage	10000hrs
Output Power	5V/2A
Integral Time	0~500mW Adjustable
Depth of Rayleigh Scattering	1ms~65s
Working Focal Length of The Probe	OD8
Camera	7.5mm
Touchscreen	8 megapixels
Ingress Protection	720x1280 Resolution Capacitive Display
Communication	IP65 design
Working Temperature	WIFI/Bluetooth/GPS
Working Temperature	0-40°C
Working Humidity	5-80%
